High-Speed CNC Machine Tool for Industrial Production Efficiency

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

CK1107

Type

Horizontal Lathe

Processing

Chuck CNC Lathe

Guide Rail

Inclined Guide Rail

Controlling Mode

CNC

Precision

High Precision

Axis

7-Axis (X, Y, Z, C, Sub-Axis)

Automatic Grade

Automatic

💎 Product Description & Advantages

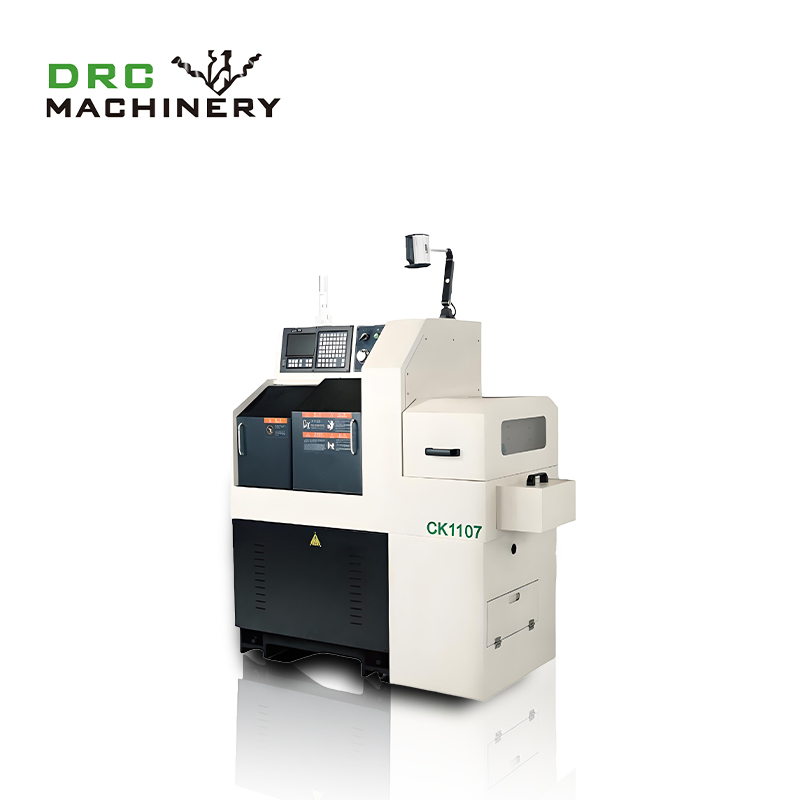

High Precision 2 Spindle 5 Axis Swiss Cnc Automatic Lathe CK1107

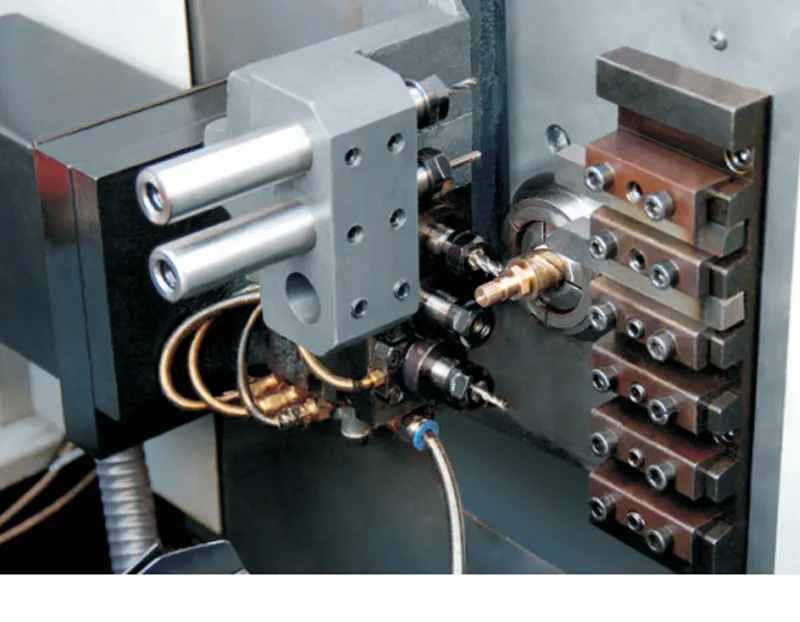

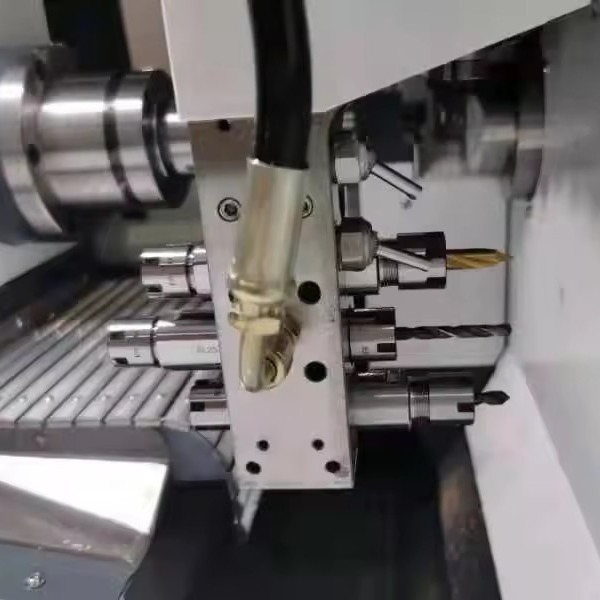

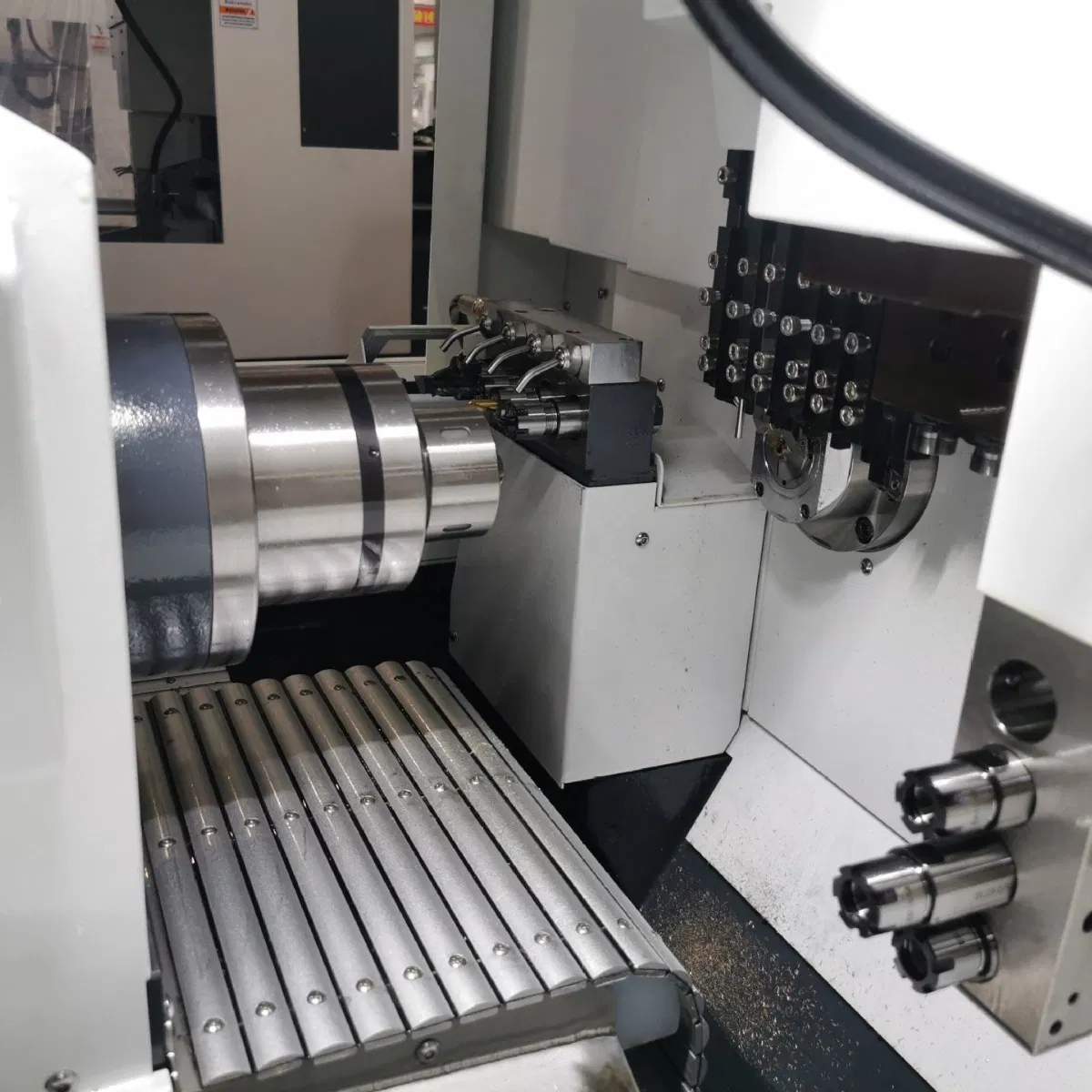

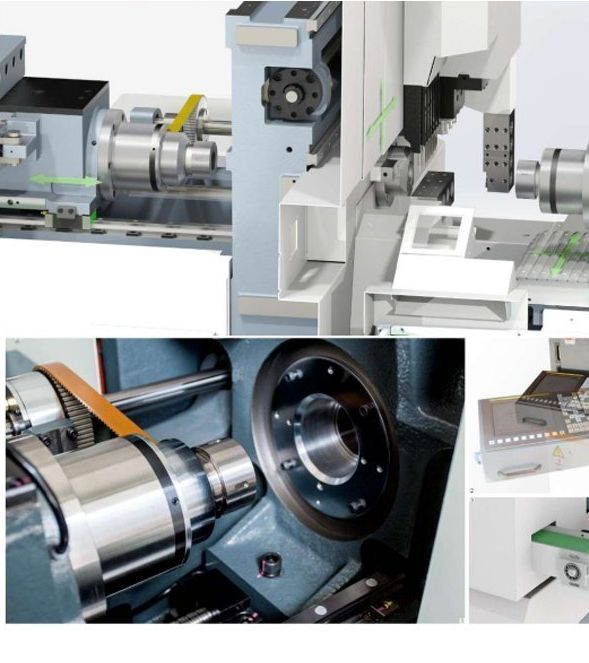

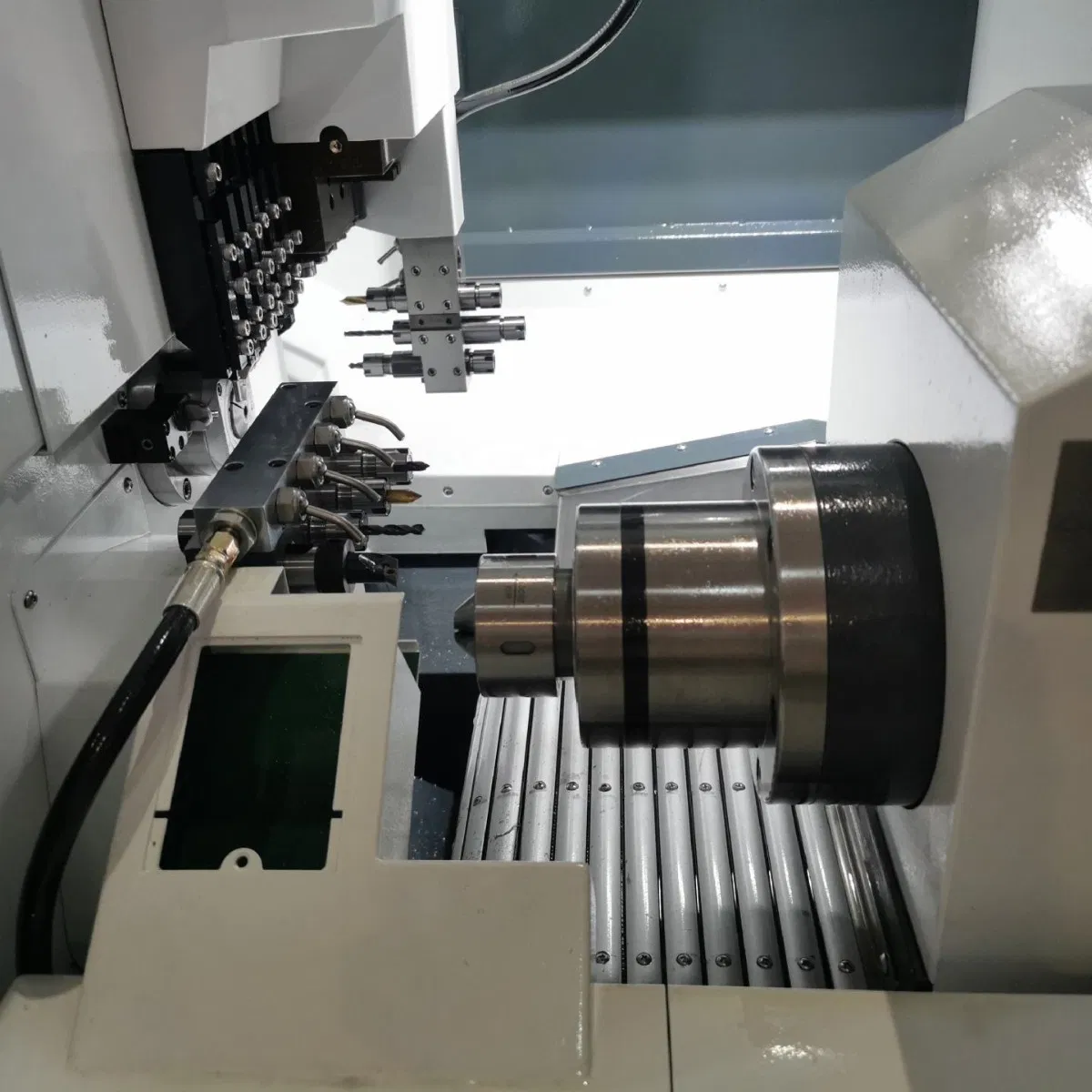

The CK1107 high-speed walking machine features a left and right row tool structure with a large number of tools, fast tool change, and exceptional rigidity. It is designed to process various ultra-slender parts with a compact footprint. All three axes adopt linear rolling guides driven by servo motors for high-precision performance.

Key Features:

Reasonable structure and high reliability for mass production.
Reduces material feeding times, improving efficiency for parts under 150mm.
Equipped with an automatic feeder to support multi-machine management by a single operator.
Imported linear guide rails for all three feeding axes.
Ideally applied to medical, electronic, and aerospace precision components.

📊 Technical Specifications

Power Supply	380V / 50HZ / 4kW Total Power
CNC System	BYSK YZ150 (Resolution: 0.001mm)
Spindle Speed	0-5000 r/min
Bar Diameter	Max Φ7mm (Hole: Φ8mm)
Axis Travel	X: 38mm \| Y: 80mm \| Z: 150mm
Rapid Feed Rate	15000 mm/min (X/Y/Z)

❓ Frequently Asked Questions

Q1: What industries is the CK1107 best suited for?

It is ideal for high-precision mass production in medical, aerospace, electronics, and automotive industries, especially for ultra-slender parts.

Q2: Can this machine operate automatically?

Yes, it is equipped with an automatic bar feeding system and can be integrated with short or long part-catching devices for full automation.

Q3: What is the precision level of the CK1107?

The machine features high-precision linear rolling guides and servo motor drives, providing a setting unit of 0.001mm.

Q4: How many axes does the machine support?

The CK1107 is configured with up to 7 axes, including X, Y, Z, C, and sub-axis control for complex machining.

Q5: What is the maximum spindle speed?

The spindle can reach speeds ranging from 0 to 5000 r/min, powered by a 2kW motor.

Q6: How does the tool structure benefit the operator?

The left and right row tool structure allows for a larger number of tools and significantly faster tool changes compared to standard gang-type lathes.
