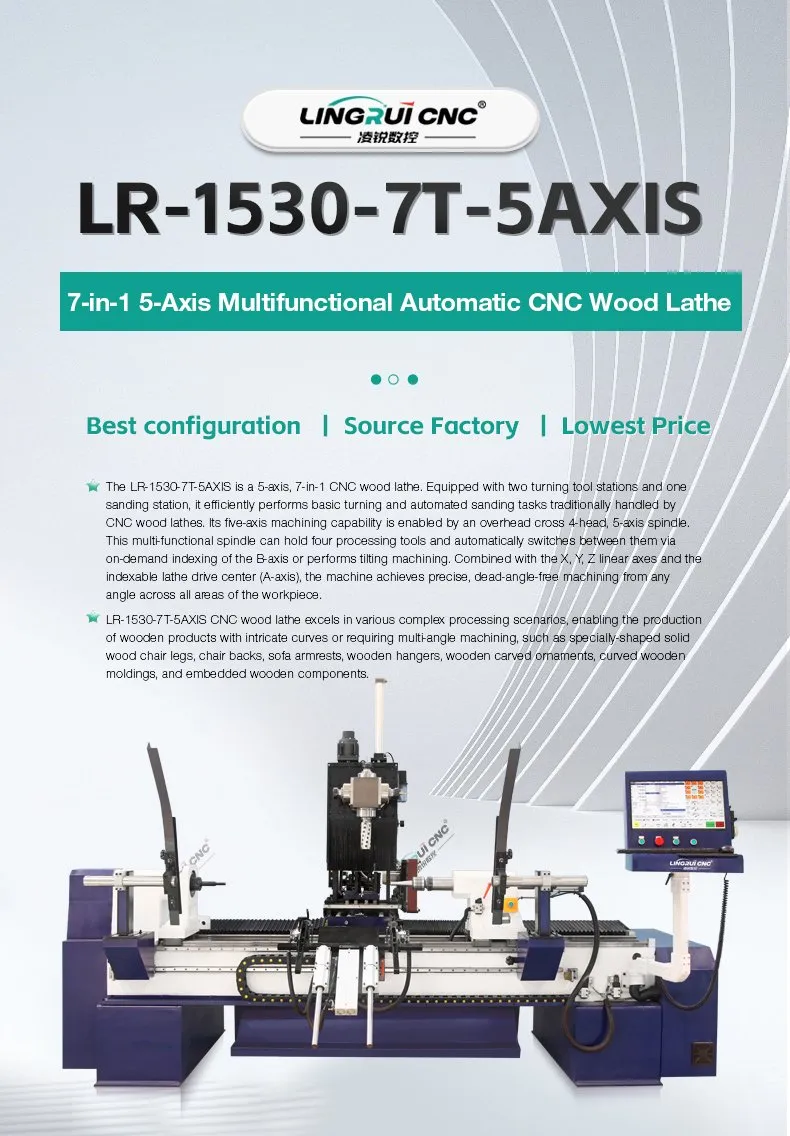

2025 Latest 3D Engraving Auto Feeding CNC Wooden Lathe Machine for Legs

1 / 5

2025 Latest 3D Engraving Auto Feeding CNC Wooden Lathe Machine for Legs

Customization:	Available
Warranty:	Three-Year Free Warranty
Type:	Single-Axis Automatic Lathe

Send Inquiry

Product Description

BASIC INFORMATION

Model NO.	CK-1530-7T-5AXIS
Product Name	5 Axis CNC Wood Lathe Machine
Voltage	380V
Control Mode	CNC (Taiwan LNC System)
Precision	High Precision (±0.02mm)
Certification	CE, ISO, FDA, RoHS
Power Source	Electric
Processing Accessory	Centre CNC Lathe
Linear Axis Motor	Bus-Type Absolute 1500W Servo Motor
Repeat Positioning	±0.02mm

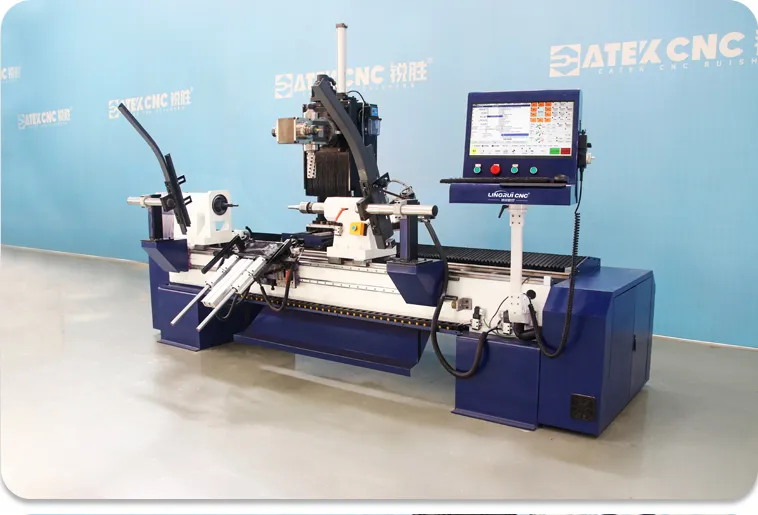

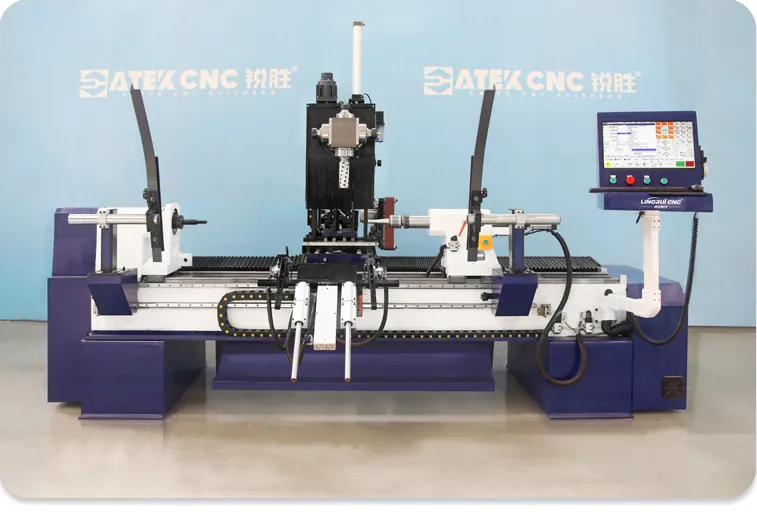

MACHINE PHOTOS

PRODUCT PARAMETERS

Model	LR-1530-7T-5AXIS
Processing Dimensions	1500 * 300mm (Customizable)
Lathe Bed	Heavy-duty integrally cast parallel twin beds
Reducer	Shimpo (Japan) planetary gear reducer

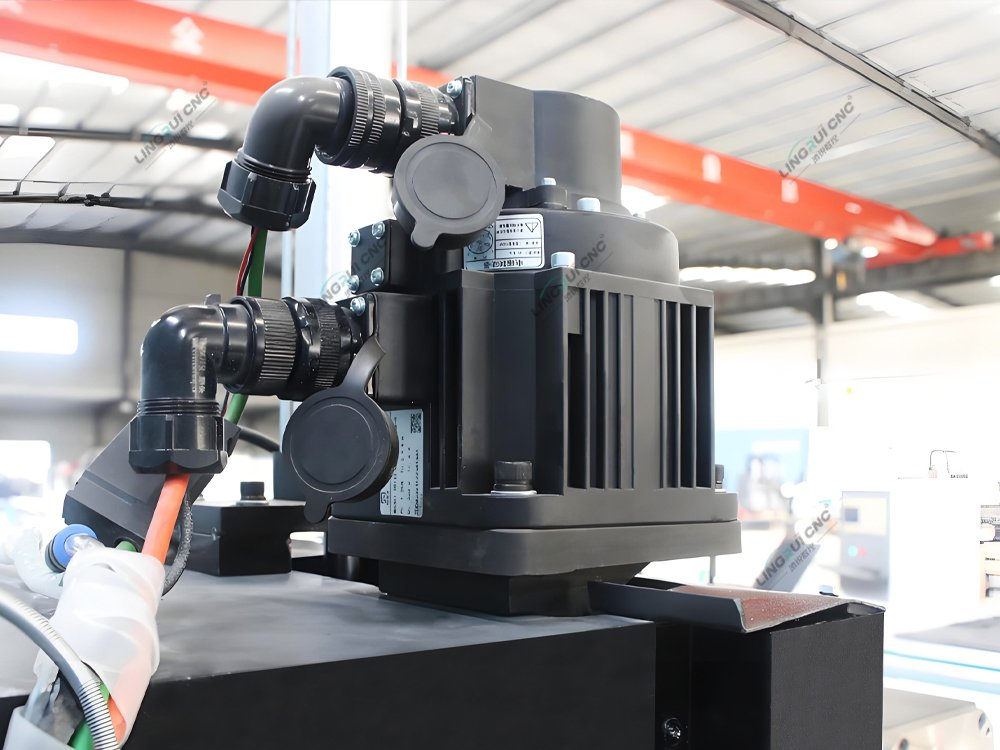

Drive-Spindle Motor	4KW pure servo high-torque motor
Spindle Speed	0-6000r/min
Multi-functional Spindle	7.5KW high-speed air-cooled four-head spindle
Multi-spindle Speed	0-18000r/min
Compatible Software	Artcam, Type3, AutoCAD, Powermill, UG, etc.
Weight	2300kg

TECHNICAL DETAILS

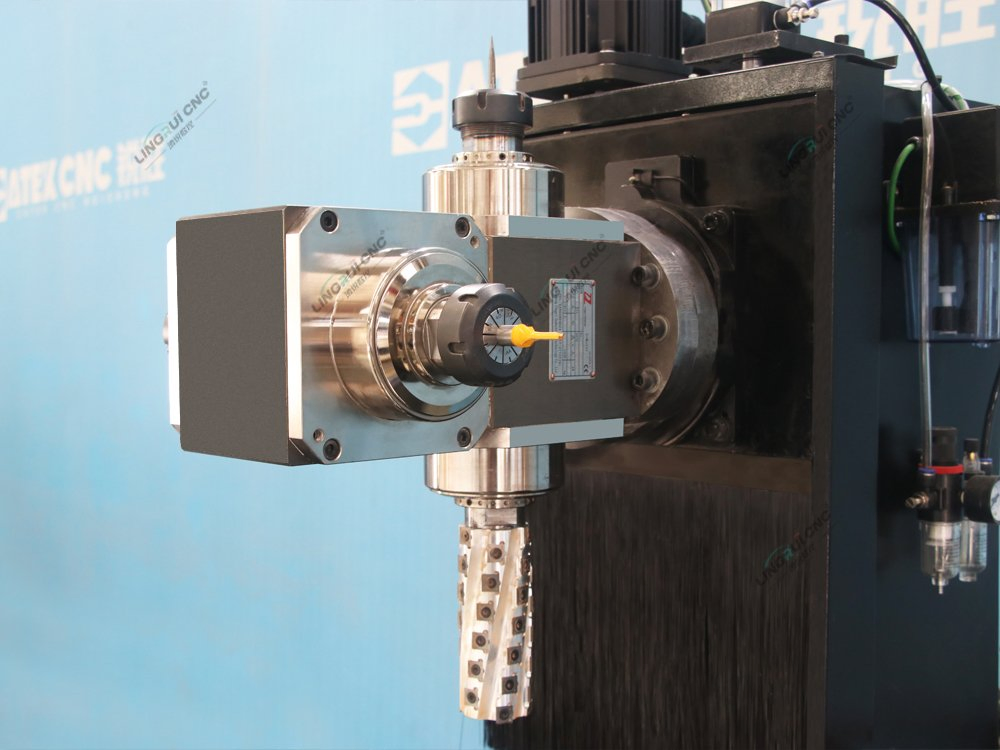

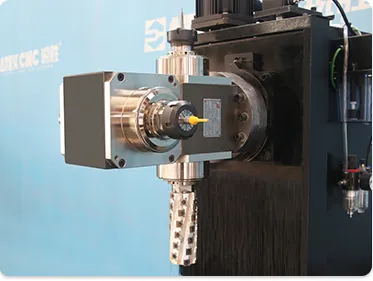

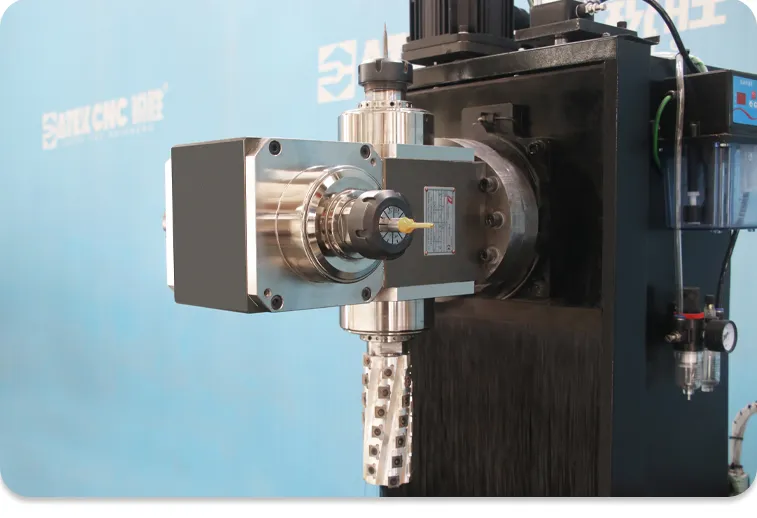

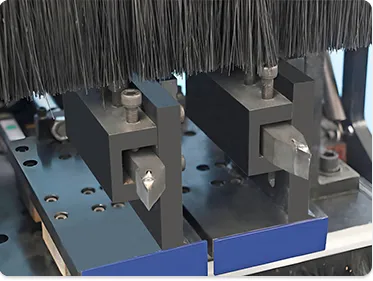

🚀 High-Efficiency Spindle: The four-head electric spindle features an integrated design with a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it allows automatic tool switching for complex drilling, grooving, and engraving.

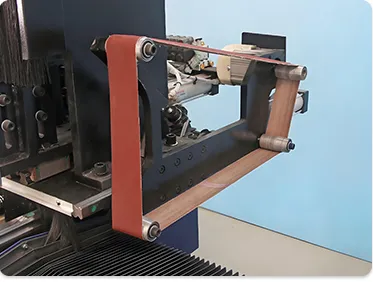

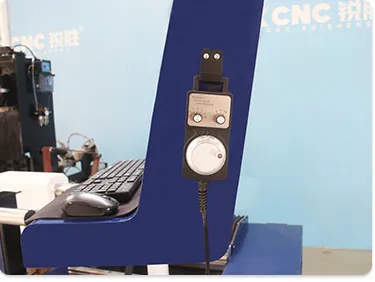

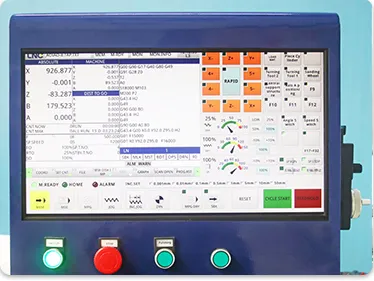

🛠 Advanced Sanding & Control: Includes an 1100W brushless servo-driven sanding belt unit (6000 rpm) and a Taiwan LNC 5-axis CNC system supporting RTCP and handwheel simulation.

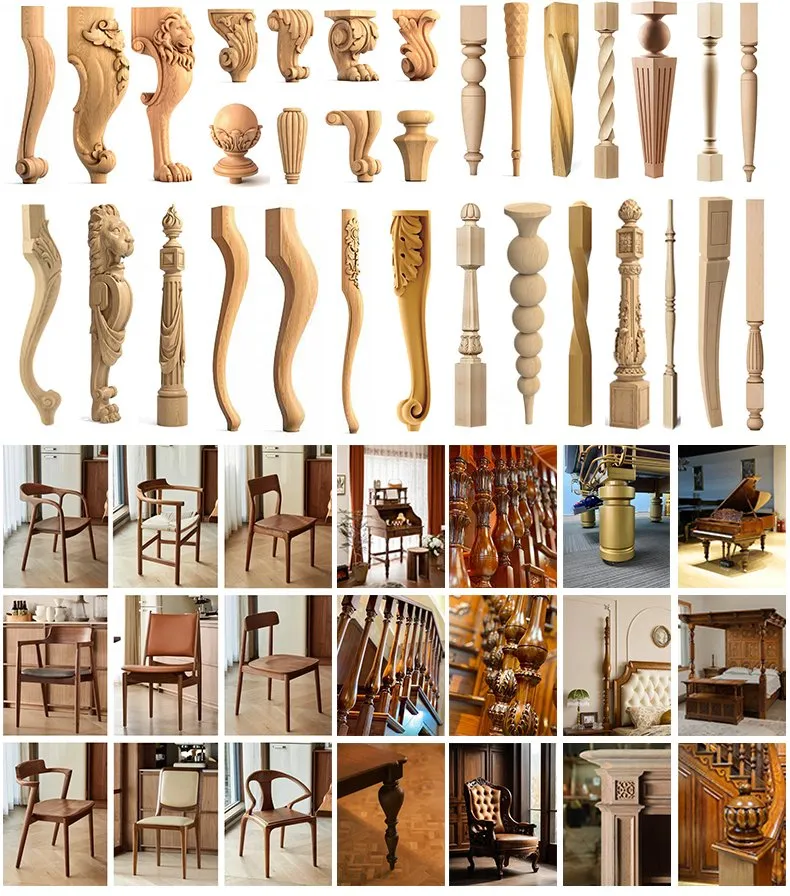

SAMPLE DISPLAY & APPLICATIONS

The LR-1530-7T-5AXIS is designed for complex special-shaped crafts including furniture manufacturing (curved table legs, sofa legs), architectural decoration (staircase columns), and musical instruments (guitar necks).

GLOBAL REACH & QUALITY

FREQUENTLY ASKED QUESTIONS

1. Are you a factory or trading company?

We are a certified factory with export licenses and nearly two decades of manufacturing experience.

2. Do you offer OEM services?

Yes, we have 19 years of OEM experience collaborating with global partners.

3. What is the warranty and after-sales support?

We offer a 3-year full machine warranty with a 12-hour guaranteed response time and 24/7 technical support.

4. How do I choose the right machine for my needs?

Simply provide your material specifications and product dimensions, and our experts will recommend the optimal configuration.

5. Is the machine easy to install and operate?

All machines are pre-tested and ready to use. We include detailed manuals and video guides; global onsite commissioning is also available.

6. Can the machine be customized for specific crafts?

Yes, customization is fully supported by our engineering team to meet your unique production requirements.
