Basic Information
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Processing Precision
0.008mm
Performance
High-End CNC Machine Tools
Product Description

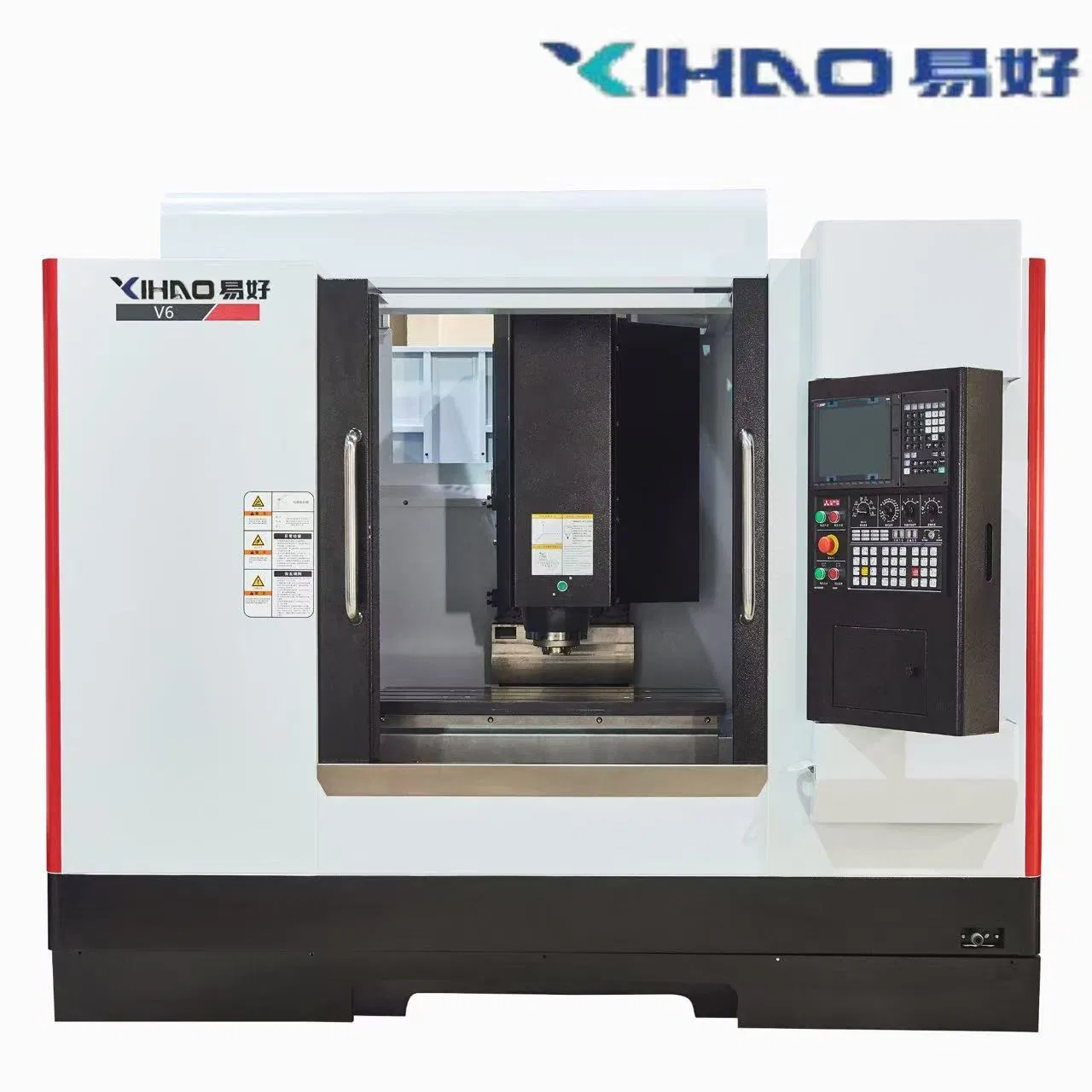

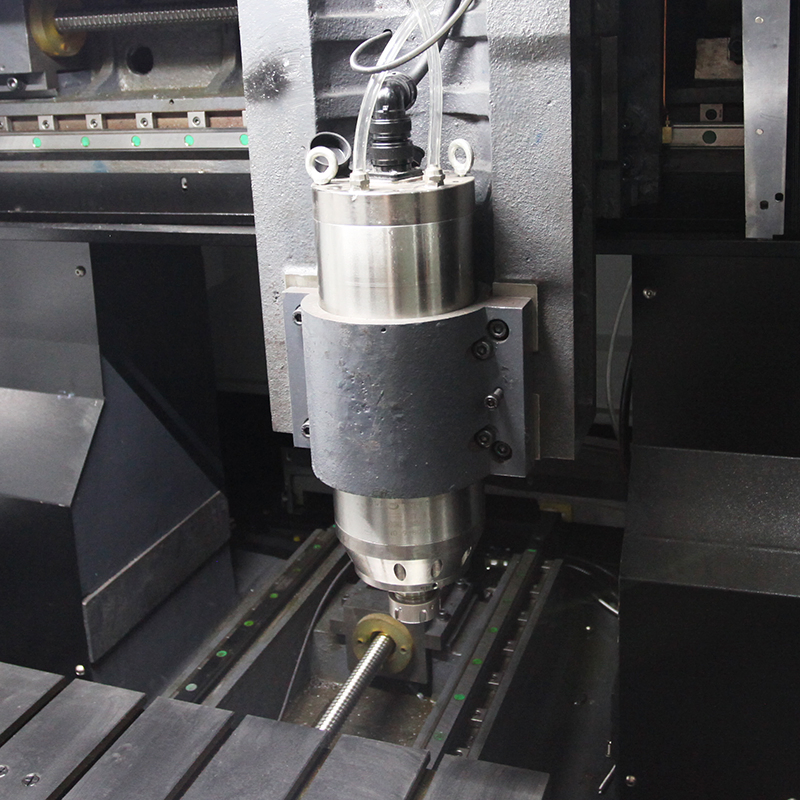

The V Series high-speed vertical machining centers are engineered for precision and efficiency. Featuring a robust box-type column and a stable base, these machines are ideal for high-speed machining in industries such as electronics, medical, and equipment manufacturing.
| ITEM |
DETAILS |
SPECIFICATION |
| Table | Worktable (L x W) | 800×420mm |
| Travel | X/Y/Z-axis Travel | 600/400/450mm |
| Load | Max Table Load | 350kg |
| Spindle | Max Speed | 15000rpm |
| Power | Motor Power | 7.5-11KW |
| Precision | Positioning Accuracy | ±0.008mm |
| Precision | Repeatability | ±0.005mm |
Key Features
Mainly used for drilling and tapping with head umbrella tool magazine for fast tool changes.
Mechanical automatic tool change system to significantly save processing time.

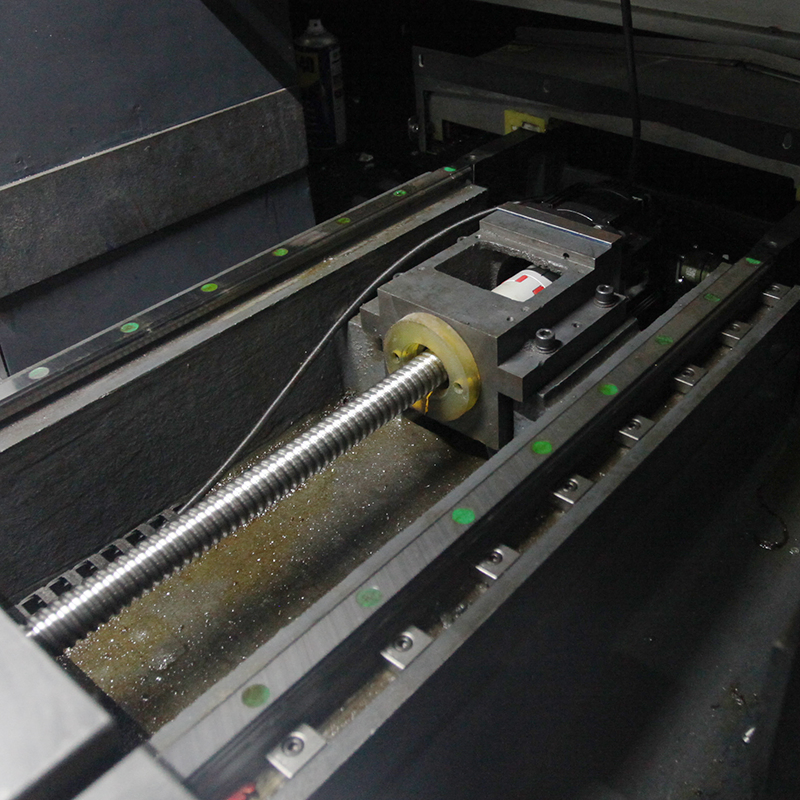

Three-axis ball linear guide way ensuring high speed and high precision.
Wide stable base and box type column to ensure stability during high-speed machining.
Rigorous RENISHAW laser detector testing for dynamic compensation and accuracy.

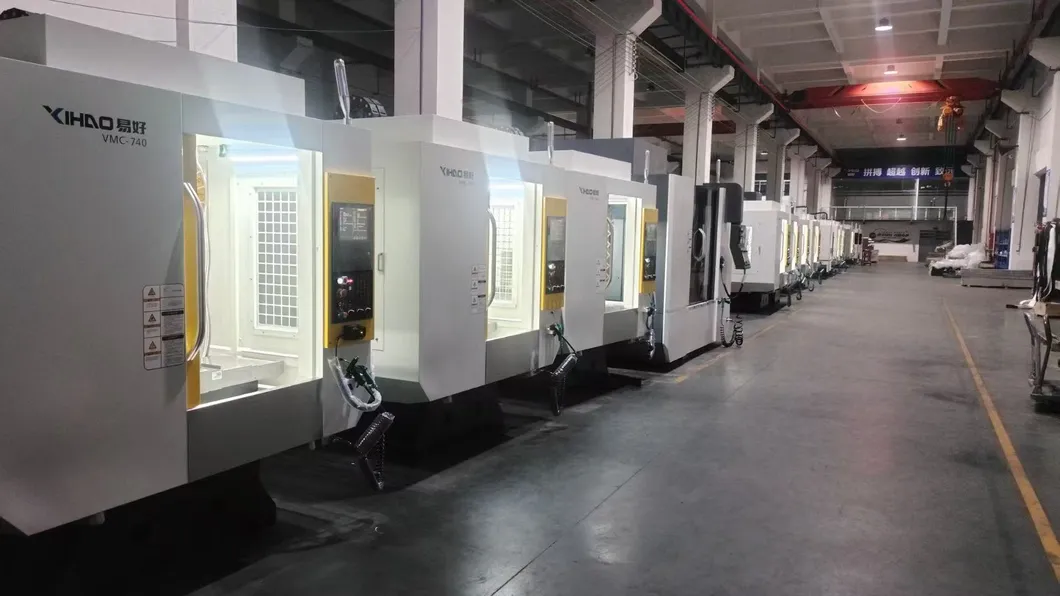

Equipment Showcase
About Manufacturing Expertise
Established with a focus on equipment manufacturing research and development, our production process involves strict control over machine tool bed structural design to enhance rigidity, efficiency, and stability. Products utilize reliable hardware and intelligent CNC systems, widely applied in precision molds, electronic communication, and medical equipment manufacturing.
Frequently Asked Questions
1. What is the minimum order quantity (MOQ) and warranty?
The MOQ is one set, and we provide a one-year warranty on our machines.
2. Which CNC systems can be integrated with the V6?
We support major systems including MITSUBISHI, FANUC, SIEMENS, and SYNTEC, depending on your specific requirements.
3. What is the standard delivery time?
Standard delivery is typically within 45 days after receiving the payment.
4. How is the warranty service handled?
During the warranty period, we are responsible for the free replacement of parts. Technical support is provided to ensure minimal downtime.
5. Do you provide technical training and installation?
Yes, we provide free technology knowledge training through digital channels. On-site installation by our engineers is also available upon request.
6. What industries are these machines suitable for?
Our high-speed machining centers are widely used in precision molds, optics, electronics, and liquid silicone equipment manufacturing.
