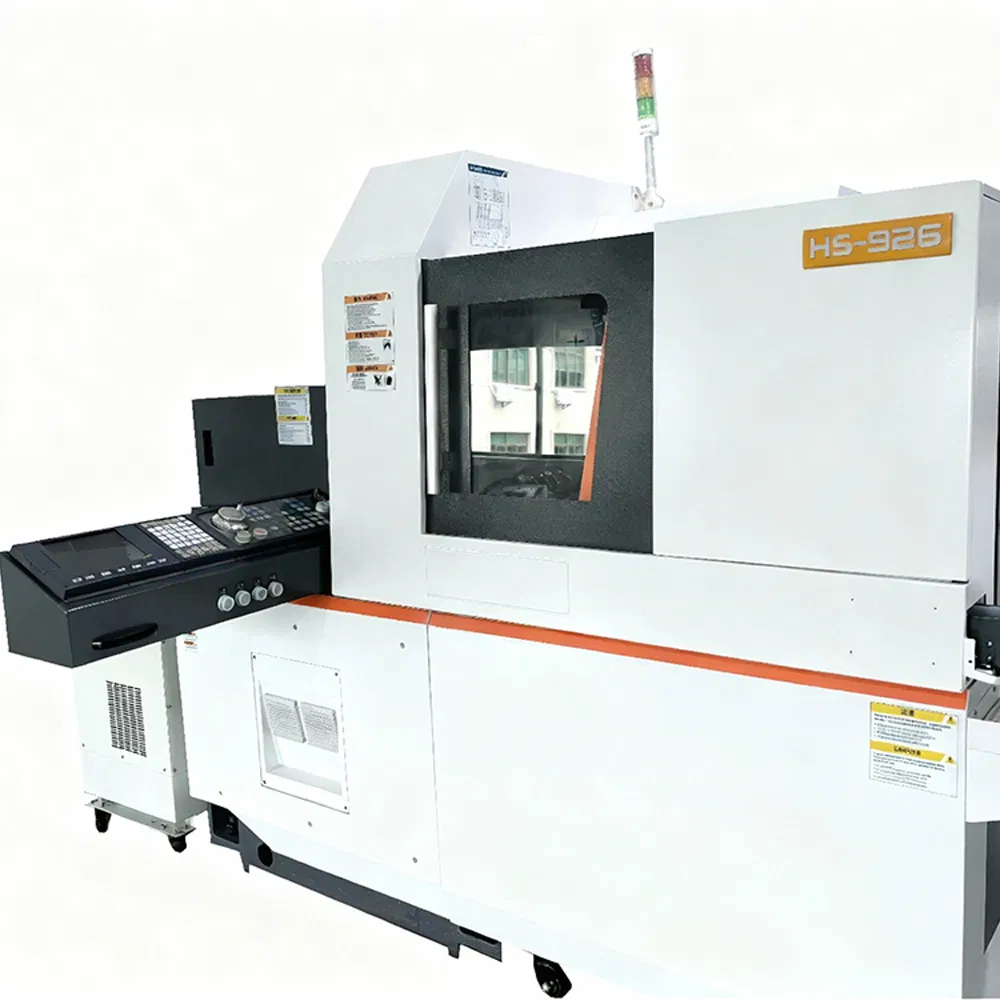

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

1 / 5

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Compact CNC Lathe for Advanced Swiss Precision Engineering

Customization:	Available
After-sales Service:	on Site Sevice
Warranty:	12months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HS-926

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Precision

0.01~0.02(mm)

Certification

CE

Condition

New

Specification

2250*1200*2000

⚙️ Product Description

CNC Lathe 1

CNC Lathe 2

Maximum processing diameter	Φ26mm
Maximum processing length	190mm
Axial maximum drilling diameter	Φ10mm
Axial maximum tapping size	M8
Maximum spindle speed	10000rpm
Radial maximum drilling diameter	Φ10mm
Radial maximum tapping	M6
Radial power head max rotation speed	6000
Rated speed of radial power head	5000
Max workpiece removal length	100mm
Side powered tool unit	6
Z1,Z2,X2,Y Axis fast forward speed	30m/min
X1 Axis fast forward speed	28m/min
Spindle center height	1060mm
Input power	12KW
Weight	2800kg

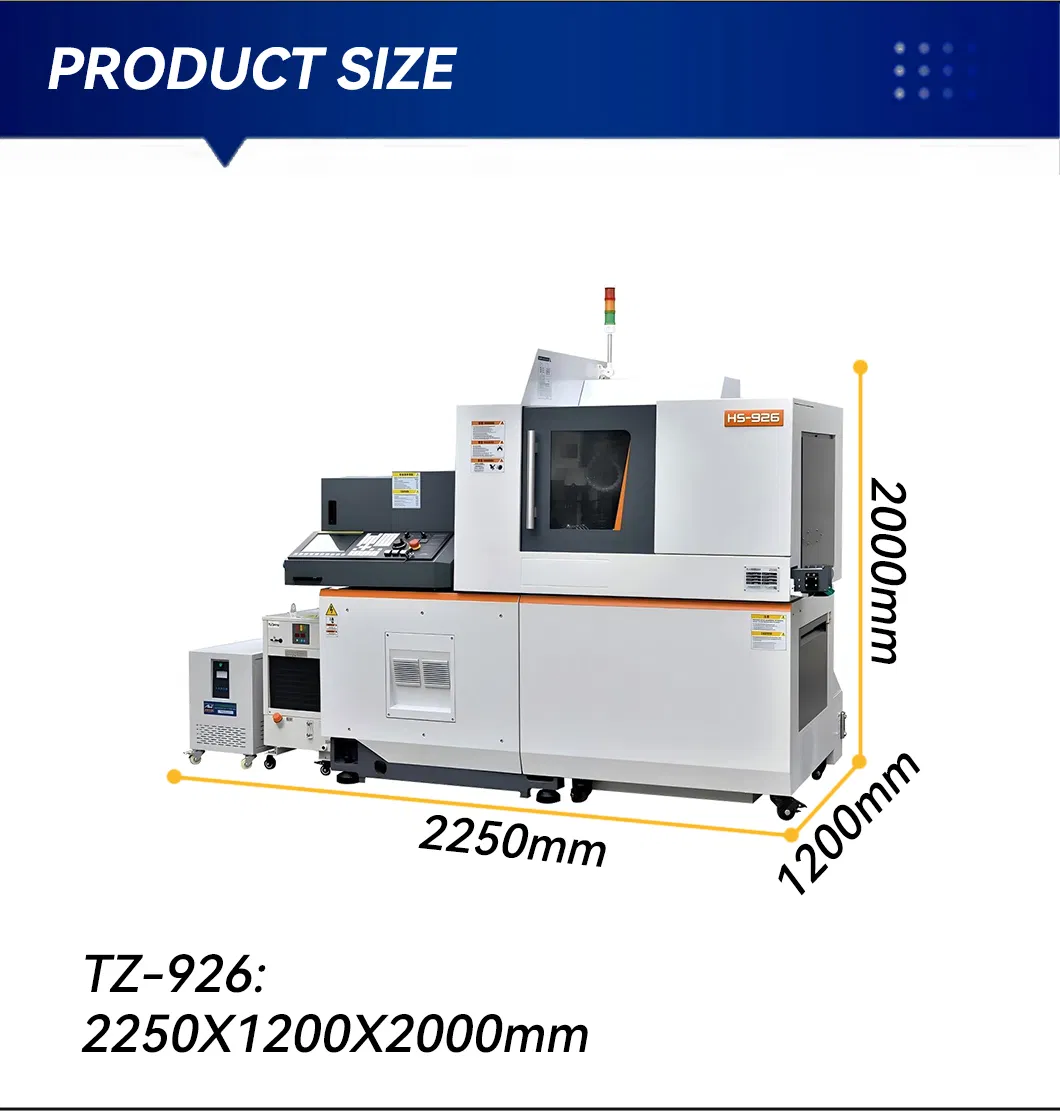

Dimensions(WXDXH)	225012002000mm

CNC Lathe Detail 1

CNC Lathe Detail 2

Technical Drawing

Component 1

Component 2

Production 1

Production 2

❓ Frequently Asked Questions

What are the Payment Terms?

We accept T/T payments. A 40% initial deposit is required, with the remaining 60% balance due before shipment.

What are your trade terms?

Our flexible trade terms include FOB, CFR, and CIF, allowing you to choose the most convenient option.

When is the delivery time?

For our standard Automated Vertical CNC Drilling Lathe, delivery is guaranteed within 30 days. Custom or special machines may take longer.

What is your minimum order quantity and warranty?

The minimum order quantity is just one set, and we provide a robust one-year warranty.

How are the machines packaged?

Each machine is securely packed in a strong wooden case to ensure it arrives in pristine condition.

How can I choose the most suitable machines?

Provide us with your specifications or product drawings, and we will recommend the best model and ideal machine configuration for you.
